Detailed Product Description
Product Name: Cell Phone PCB Material: Aluminum Base
Board Thickness:: 0.2mm-4.0mm Min. Line Width:: 0.075mm(3mil)
Application: Cell Phone Vacuum Packing,: Plastic Bag

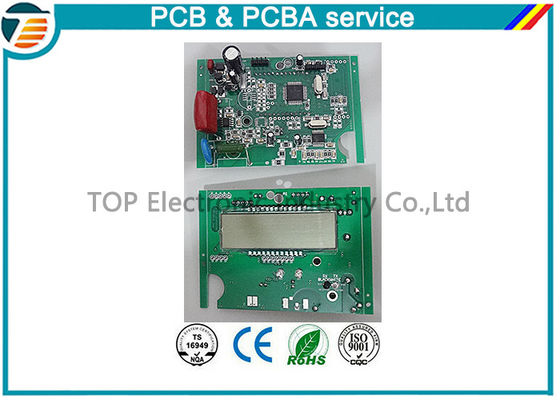

Phone Mobile Circuit Board PCB Assembly Services with LCD Display





PCB Specification:

ITEM

Parameter

Layer count

1-16 layers

Material

fr4,Tg=135,150,170,180,210,cem-3,cem-1,al base, teflon, rogers, nelco

Copper thickness

1/2oz,1oz,2oz,3oz,4oz,5oz

Board thickness

8-236mil(0.2-6.0mm)

Max. panel size

32"X20"(800X508mm)

Min. line width/space

3/3 mil(75/75um)

Min. inner layer annular ring

4 mil(0.10mm)

Min. core thickness

4 mil(0.10mm)

Surface treating of inner layer

brown oxide

Inner layer ragistration

3 mil(76um)

Tolerance of board thickness

+/- 12-10 %

Min. drill size

8 mil(0.2mm)

Min. HDI laser drill size

3 mil(0.067mm)

Tolerance of hole size

2 mil(0.05mm)

Tolerance of hole position

2 mil(0.05mm)

Max. aspect ratio

10:01

PTH copper thickness

1 mil(25 um)

Solder mask color

Green, blue, yellow, white, black, red

Solder mask thickness

5-30um

Solder mask hardness

6H

Min. solder mask dam

3 mil(75um)

Max. hole size of S/M plug

24um(0.6mm)

Peelable solder mask

yes

carbon ink

yes

surface treating

HASL(ROHS), ENING,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold,gold finger

Nickel thickness

120-240u"(3-6um)

Gold thickness

2-30u" (0.05-0.76um)

Impedance control

Ohms+/-10%

Blind hole/buried hole

yes

Half hole

yes

Sink hole

yes

HDI

1+1+N+1+1

VOP

yes

Rouuting tolerance

+/- 6um(0.15mm)

V-cut

yes

Solderability test

245' C, 5S

Thermal stress test

280 ℃/10 secs

Feel strength of line

≥61B/In(≥ 107g/mm)





Application:

Fixed telephone, Leaning machine, Cell phone ,



Our PCB service:

1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-12 layers, Buried & Blind via PCB, Indolence PCB, High frequency PCB, FR-4,Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done.





Package :

Phone Mobile Circuit Board PCB Assembly Services with LCD Display









Phone Mobile Circuit Board PCB Assembly Services with LCD Display










The PCB factory which we cooperated has more than 14 years of Experience in PCB Industry,

There are more than 600 employees and four factories; one factory for prototypes, one for mass production, one for aluminum and copper PCBs, and one for PCB assembly. Each factory has the ability to make 8,000 square meters per month and we offer 1,000 kinds of PCB fabrication monthly, including one- to 20-layer PCBs, HDI, aluminum, heavy copper and halogen-free PCBs.





With the powerful support from the partner, we Have confidence to give our customers best service.
