Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sim Card Holder | Pitch: | 2.54mm |
|---|---|---|---|
| Pin: | 6 Pin | Height Above Board: | 2.5mm |
| Mounting Type: | Surface Mount, Right Angle | Contact Finish: | Gold |
| High Light: | Sim card Connector,sim card tray |
||

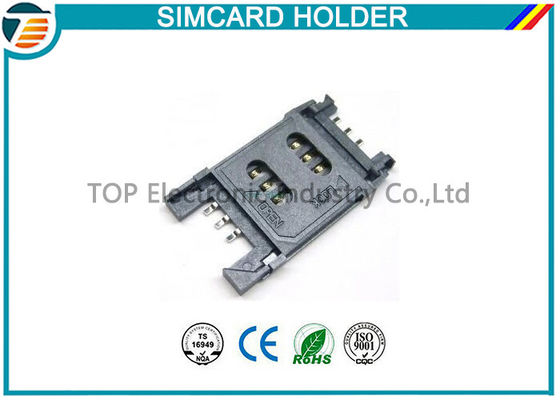

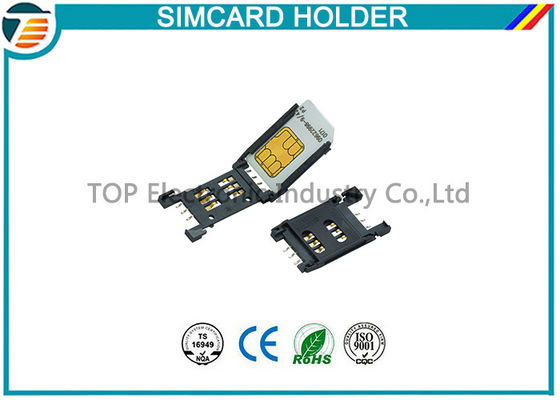

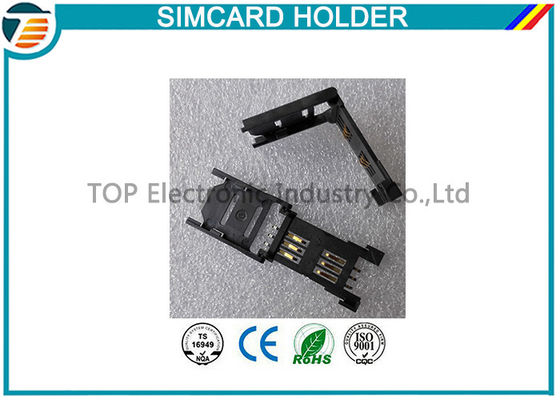

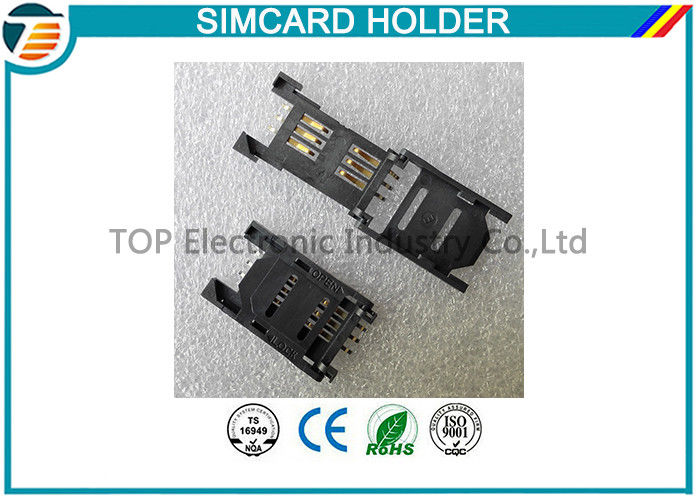

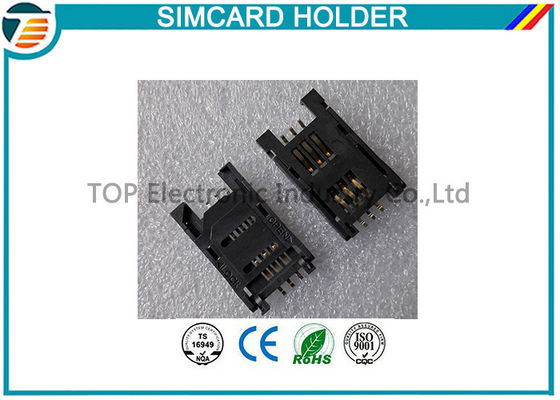

2.54MM Pitch SIM Card Holder / SAM Card Holder with HINGED TYPE 6 Pin TOP-SIM01-1
8 pin SIM card holder ,
6 pin SIM card holder with metal cover
Package:
Overview:
SIM card holders assembled on the PCB,are used for identification of readers/writers and Point of Sale terminals. These types of Card are sometimes referred to as SAMs (Secure Application Module) card.
Introduction:
l SAM/SIM CARD READER
l LOW PROFILE DESIGN WITH HINGED COVER
l CARD DETECTION SWITCH
l PUSH & SLIDE LOCKING MECHANISM ASSURES HIGH RETENTION AND OPERABILITY
l INSULATION MATERIAL:
Thermoplastic, UL 94V-0 BLACK
l OPERATING TEMPERATURE: -40°C ~ + 85°C
l 6 PIN or 8 PIN SURFACE MOUNT DEVICE
Material:
On contact area, tin plating on solder tail
Specification:
Key Features:
|
Packaging |
Tape & Reel (TR) |
|
Standard Package |
800 pcs |
|
Card Type |
SIM Card |
|
Number of Positions |
6 |
|
Connector Type |
Connector and Ejector |
|
Insertion, Removal Method |
Hinged Lid |
|
Ejector Side |
- |
|
Mounting Type |
Surface Mount, Right Angle |
|
Pitch |
2.54mm |
|
Features |
Board Guide |
|
Height Above Board |
0.098" (2.50mm) |
|
Mounting Feature |
Normal, Standard - Top |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
31.5µin (0.80µm) |
Application:
l GSM APPLICATIONS
l MOBILE PHONES
l POINT OF SALE TERMINALS
l PORTABLE DEVICES
l PERSONAL SMART CARD DEVICES
Drawing:
Packing:
We can also supply many other types of SIM Card holders, with good quality and cheaper price, please contact our sales team for more information.
