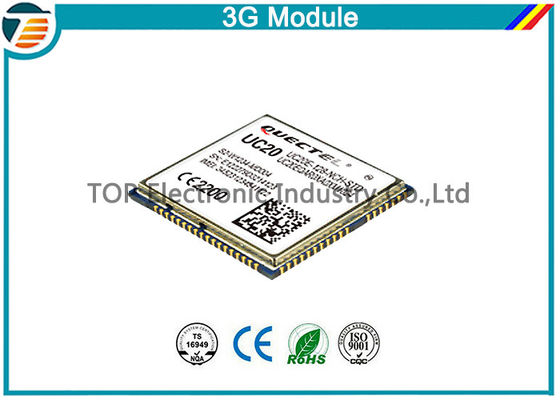

QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package

QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package
QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package

Large Image :  QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package

Product Details:
Place of Origin: China
Brand Name: QUECTEL
Certification: CE/ FCC/ IC/ KC/ NCC/ OFCA/ GCF/ PTCRB/ RCM/ SKT/
Model Number: UC20 LCC
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: 25~26usd
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 2-3 working days after received the payment
Payment Terms: T/T, paypal or western Union
Supply Ability: 8000pcs per month
Detailed Product Description
Product Name: 3G Module Weight: 4.9G
Size: 32x29x2.5mm Temperature Range: -40℃ To 85℃
Approval: AT&T/ Rogers/ ANATEL/ Vodafone/ TA/ NAL Supply Voltage Range: 3.3 ~ 4.3V, 3.8V Typ
High Light:

3g gsm module

,

gsm modem module



QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package



There are LCC and mini PCIE 2 type package

E(for Europe)

A(for America)

G(for Global)









Description:



STOCK Quectel UC20-E UC20-A UC20-G available .

Brand-New Originals with Factory boxes;

Best price for wholesale and stock supply .

UC20 is the latest Quectel UMTS/ HSPA+ module offering a maximum data rate of 14.4 Mbps downlink and 5.76 Mbps uplink. UC20 is designed to provide customers with global network coverage on the connectivity of HSPA+/ WCDMA. It can also be fully backward compatible to existing EDGE and GSM/ GPRS networks through multi-band combination of quad band WCDMA and quad band GSM.







General Features:

General Features



Packing

112-pin LCC

Notice

Dimensions

32*29*2.5mm



3G

UMTS/HSDPA

Frequency Range(MHz)

900/2100@UMTS

E(for Europe)

900/1800@GSM

850/1900@UMTS

A(for America)

850/900/1800/1900@GSM

800/850/900/1900/2100@UMTS

G(for Global)

850/900/1800/1900@GSM

Weight(approx.)

4.9g



Temperature Range

_40°C to +85°C

Data Transmission

HSPA data rate(Mbps)

14.4(DL)/5.76(UL)

UMTS data rate(Kbps)

384(DL)/384(UL)

GPRS data rate(Kbps)

85.6(DL)/85.6(UL)

EDGE data rate(Kbps)

236.8(DL)

SMS

Yes

CSD

Yes

Protocols

TCP/UDP/PPP/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL

Interfaces



Audio

Digital Audio through PCM Interface (Optional)



USB

2.0 High Speed

UART

1×Full Function, 1×Debug

USIM

1.8V/3V

Netlight

1×NET_MODE, 1×NET_STATUS

ADC

× 2, 15bits

RTC Backup

Real Time Clock

SD



RESET



PWRKEY



Antenna

Pads for Primary, Rx Diversity and GNSS

Status

Indication for Power On an







The tiny profile of 32.0 × 29.0 × 2.5mm in cost optimized SMT form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity. Its advanced LCC package allows fully automated manufacturing for high-volume applications.





Application:

A rich set of internet protocols, industry-standard interfaces (USB/UART/ PCM/ ADC/ Antenna-Diversity) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as automotive, metering, tracking systems, security solutions, routers, wireless POS, mobile





Product show:



QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package 0









QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package 1







OUR Offer:



communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.

We're also one of the biggest stocking distributors of active and passive electronic components located in Shen Zhen
